Inner Row

Overview

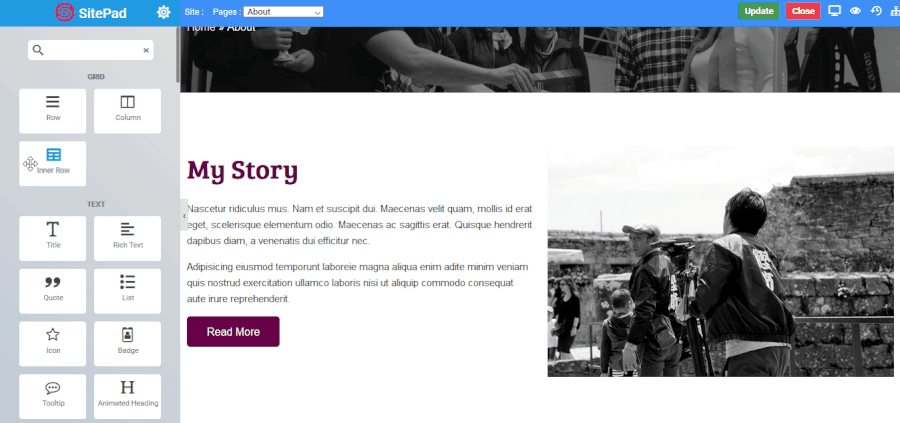

Inner Row Widget has same functioning as Row Widget. An Inner Row widget is used to create another row inside a Column to further divide it into more columns. Have a look at the following animated Gif to get an idea about the Inner row widget.

Inner Row

Options

  • Container Width : Choose the width for the particular row - Auto (Width of the main Container), Full (Full width of the viewing device), Fixed (a width that you will define),
  • Row Width (Option only available for fixed-width) : Set the width for the row in px (pixel unit).
  • Column Gap : Set the space between each column you use inside the Inner Row.
  • Content Width : Set the max-width of the content inside the row eg - Auto (Width of the row), Fixed (as per user define), Full (Full width of the device).
  • (Option only available for fixed-width) : Set the width for the row in px (pixel unit).
  • Height : Set the height of the inner row and its columns - Default (original height of the row), Fit screen (as per the height of the user device), Min-height (minimum height as per user define).
  • Min height (Option only available for Min Height) : Set the Min height for the row in px (pixel unit).
  • Content V-align : Set the vertical alignment of all the elements inside the Inner Row - Default, Top, Center, Bottom

Background

  • Background Type : Choose the background for column - None, Video, Parallax, Slider.
  • Video URL (Option only available for Video) : Set the column background to your choice of video.
  • Image (Option only available for Parallax) : Set the column background to your choice of parallax image.

Related Guides :


Background Overlay

There are two states of Background Overlay i.e. Normal which will always be visible and Hover background effects are visible on Mouse Hover.

  • Delay (Option only available for HOVER) : Set the time it takes to appear. This time is in milliseconds, so 1000 ms is equal to 1 second.
  • Overlay Type : Choose the type of overlay for column eg - None, Color, Gradient, Image.

Color Overlay

  • Color : Choose the overlay color for the column.
  • Transparency : Set the transparency of the overlay type.

Rr6jFA3vuk

Gradient Overlay

  • Angle : Set the angle of the gradient color to be displayed from 0 to 360 degree.
  • Color 1 : Choose the first gradient color.
  • Percentage : Choose the percentage of the first gradient color to be displayed.
  • Color 2 : Choose the second gradient color.
  • Percentage : Choose the percentage of the second gradient color to be displayed.
  • Color 3 : Choose the third gradient color.
  • Percentage : Choose the percentage of the third gradient color to be displayed.
  • Transparency : Set the transparency of the overlay type.
Note
The percentage total of all three gradient color should not exceed 100 for it to work effeciently..

See the following screenshot to add a Gradient Overlay :

cffX2IOeJc

Image Overlay

  • Image : Select the image you want to display as an overlay.
  • Attachment : Set the image attachment type eg - Default, Scroll(Scrollable), Fixed(Parallax).
  • Position - X : Set the horizontal position of the image for overlay eg - Default, Center, Left, Right.
  • Position - Y : Set the vertical position of the image for overlay eg - Default, Center, Top, Bottom.
  • Repeat : Set the overlay image to repeat itself if space is available eg - Default, Repeat (image will be repeated horizontally and vertically as per available space) , No-Repeat (image will not be repeated), Repeat-X (image will be only repeated horizontally), Repeat-Y (image will be only repeated vertically).
  • Size : Set the size of the overlay image eg - Cover (image takes full available space), Contain (actual size of the image not exceeding column size).
  • Transparency : Set the transparency of the overlay type.

The following is a screenshot to add a Image Overlay :

pLQpsvQupZ

Shape Styles

Shape styles are unique effects you can use to enhance the visual appeal of your Rows. We support many styles and you can refer to How to create Shape Styles guide.
The following shape options are available :
  • Position : Select the position where you want to display shade.
  • Type : Select the style of the shade you want to use.
  • Color : Set the color of the shade style.
  • Width : Set the width of the shade style.
  • Heigth : Set the height of the shade style.
  • Flip : Flip the shade to other direction.
